15 Oct R&S®MXO3: Fast. Precise. Compact.
Rohde & Schwarz presents the MXO3 oscilloscope, the new member of the “neXt generation” oscilloscopes.
Fast. Precise. Compact.
Until now, 3000-class oscilloscopes have only captured a small fraction of real-time signal activity, struggled to isolate small details in the presence of larger signals and made trade-offs between performance and size.
This is all changing with the MXO 3. The latest addition to Rohde&Schwarz‘s MXO Series promises to be faster, more precise and pack more features into a smaller footprint, offering a combination of specs that you will not find anywhere else.
The specifications for both, the 4 and 8 channel variants, position the R&S®MXO 3 series as the industry leader in its class.
Subscribe to our channelExperience the power of precision in a compact form with the R&S®MXO 3 Series oscilloscope. Designed to deliver big performance in a small package, it gives you instant, expert-level insight into your device under test — faster and easier than ever before.
Powered by next-generation MXO technology, the MXO 3 Series redefines speed and accuracy. With the world’s highest acquisition rate of up to 4.5 million waveforms per second and real-time signal capture of up to 99%, you’ll see every signal detail as it happens — no event goes unnoticed.
Achieve unparalleled clarity and confidence in your measurements with 12-bit ADC resolution across all sample rates, an enhanced 18-bit HD mode, advanced digital triggering, and an impressive 125 Mpoints of standard memory.
All this performance comes in a sleek, space-saving design. The 11.6″ Full HD display offers brilliant visuals, while the compact 5U rack height ensures seamless integration into any workspace without compromise.
From time-domain to frequency-domain analysis, the R&S®MXO 3 Series sets a new standard for debugging and testing performance — compact, powerful, and built for professionals who demand the best.
Key facts
- Bandwidth (sw upgradable): 100MHz, 200MHz, 350MHz, 500MHz and 1GHz
- World’s fastest oscilloscopes with 4.5 million waveforms/s and up to 99 % real-time capture
- Industry-leading system architecture: 18-bit vertical resolution/12-bit ADC
- Industry leading spectrum acquisition rate >45,000 FFT/s, on 4 simultaneous FFTs assignable on any analog or match channel and independent time and frequency settings
- Zone trigger: 4 zones (each up to 8 polygon areas, with each area up to 16 points) assignable on time domain, frequency domain and math channel sources
- Most-compact 8-channel oscilloscope with MSO, generator and large 11.6″ display
- 4 or 8 analog ch.: 0.1~1GHz, 12~18bit, 5GSa/s, 4.5MWfms/s, 125Mpts/ch (opt.500Mpts)
HDmode: 18bit@10MHz, 16bit@100MHz, 15bit@200MHz, 14bit@500MHz - Offset: ±3V@1mV/div, ±30V@60mV/div, ±200V@1V/div
- Noise floor 46uV@1mV/div
- 16 digital ch.: 400MHz, ±40V, 1bit, 5GSa/s, 400Mpts/ch
- Timebase accuracy ±2.5ppm,; Trigger rearm time <21ns, Trigger jitter <1ps
- History and segmented memory: 8ch@125Mpts/ch, 10K segments
optionally 4ch@500Mpts/ch, 1M segments - Decode: UART|RS232/422/485|I2C|I3C|SPI|QuadSPI|customNRZ|customManchester,
CAN|CAN-FD/XL|LIN|SENT, 10BASE-T1S, ARINC429|MIL-1553|SpaceWire, SPMI|RFFE - AWG: 1 channel 1m~50MHz, ±2.5/5.0Vpp, 14bit, 312.5MSa/s, 128Kpts
Modulation AM|FM|FSK|PWM, Sweep
MXO Series oscilloscope comparison (features and prices)
| Channels | 2 or 4 analog [+ 16 digital] | 4 or 8 analog + 16 digital | 4 analog + 16 digital | 4 or 8 analog + 16 digital | |
|---|---|---|---|---|---|
| Bandwidth (MHz) | 100, 200, 350, 500, 1000 | 200, 350, 500, 1000, 1500 | MXO58(C): 100, 200 All: 350, 500, 1000, 2000 | ||
| CPU | n.a. | ARM | x86 | ||
| ASIC | n.a. | MXO34: 1x MXO-EP MXO38: 2x MXO-EP | 1x MXO-EP | 2x MXO-EP | |
| Vertical Resolution | 10-bit ADC up to 16bit in HD mode | 12-bit ADC 18bit@≤30MHz, 16bit@≤100MHz, 15bit@≤300MHz, 14bit@≤500MHz | |||
| Sampling Rate | 2ch@5GSa/s, 4ch@2.5GSa/s | MXO34: 2ch@5GSa/s, 4ch@2.5GSa/s MXO38: 4ch@5GSa/s, 8ch@2.5GSa/s | 2ch@5GSa/s, 4ch@2.5GSa/s | 4ch@5GSa/s, 8ch@2.5GSa/s | |
| Acquisition Rate | ≤64 Kwfms/s | >4.5 Mwfms/s | |||
| Memory depth | 40Mpts/ch @4ch 80Mpts/ch @2ch | 125Mpts/ch @All ch [500Mpts/ch @Half ch] | 400Mpts/ch @4ch [800Mpts/ch @2ch] | 500Mpts/ch @All ch [1Gpts/ch @Half ch] | |
| Trigger Rearm time | n.a. | <21 ns | |||
| Trigger modes | auto, normal, single, [n single] | auto, normal, single, n single | |||
| Trigger types | Edge, Width, Video, Pattern, Runt, Rise/Fall time, [Serial bus], Line, Timeout, External | Edge, Glitch, Width, Runt, Window, Timeout, Interval, Slew rate, Setup&Hold, Pattern, State, Sequence (A/B/R), [Serial bus], Line, External, Zone | |||
| Zone Trigger | n.a. | 4 zones (each one with 8 polygonal areas of up to 16 points each), independently assignable on acquired waveforms (input channels), math waveforms (including power analysis waveforms), spectrum waveforms, XY plots | |||
| Timebase range | 500ps~500s/div | 200ps/div ~ 10.000s/div | |||
| Timebase accuracy | ±2.5ppm / ±3.5ppm | ±0.2ppm / ±1ppm | |||
| Deskew range | ±500ns | between ana.ch. ±20ms; between dig.ch. ±100ns | |||
| Noise Floor 200MHz | n.a. | 1MΩ: 46µV@1mV/div 50Ω: 64µV@1mV/div | 1MΩ: 42µV@0.5mV/div 50Ω: 43µV@0.5mV/div | 1MΩ: 40µV@0.5mV/div 50Ω: 26µV@0.5mV/div | |
| Noise Floor 500MHz | n.a. | 1MΩ: 54µV@1mV/div 50Ω: 83µV@1mV/div | 1MΩ: 51µV@0.5mV/div 50Ω: 50µV@0.5mV/div | 1MΩ: 54µV@0.5mV/div 50Ω: 39µV@0.5mV/div | |
| 50Ω Input sensitivity | 0.5mV~1V/div | 1mV~1V/div | 0.5mV~1V/div | 0.5mV~3V/div @50Ω | |
| 1MΩ Input sensitivity | 0.5mV~10V/div | 1mV~10V/div | 0.5mV~10V/div | 0.5mV~10V/div @1MΩ | |
| 50Ω Offset range @div | ±2V@0.5~33.6mV ±10V@33.8~111mV ±30V@112mV~1V | ±3V@1~70mV ±20V@70mV~1V | ±5V@0.5~100mV ±20V@100mV~1V | ±2V@0.5~33mV/div ±7V@33~120mV/div ±15V@120mV~3V/div | |
| 1MΩ Offset range @div | ±2V@0.5~50mV ±25V@50.5~510mV ±250V@515mV~10V | ±3V@1~60mV ±30V@60mV~1V ±250V@1~10V | ±5V@0.5~80mV/div ±50V@80~800mV/div ±200V@800mV~10V/div | ||
| Spectrum | 1x 10 FFT/s | 4x >45K FFT/s | |||
| AWG [B6] | Gen 25MHz, 14bit, 250MSa/s, 4bit pattern gen. 8Kpts | AWG 50MHz, 14bit, 312.5MSa/s, 32Kpts AM, FM, FSK, PWM, Sweep | 2 synchronisable AWG channels, 100MHz, 16bit, 625MSa/s, 40Mpts/ch AM, FM, FSK, PWM, Sweep | ||
| Protocols | [UART|RS232/422/485], [I2C|SPI], [CAN|LIN], [ARINC429], [MIL-1553], [I2S|LJ|RJ|TDM] | [UART|RS232/422/485|I2C|SPI|QuadSPI| customNRZ|customManchester], [CAN|CAN-FD/XL|LIN|SENT], [ARINC429|MIL-1553|SpaceWire], [I3C|SPMI|RFFE], [10BASE-T1S] | [UART|RS232/422/485|I2C|SPI|QuadSPI| customNRZ|customManchester], [CAN|CAN-FD/XL|LIN|SENT], [ARINC429|MIL-1553|SpaceWire], [I3C|SPMI|RFFE], [10BASE-T1S|100BASE-T1|1000BASE-T1] | ||
| FW Ver. | 01.710 | 2.7.2.1 | 2.7.2.2 | 2.7.2.2 | |
| I/O | Trig.IN, Aux.OUT (Ref|Mask|Trig), LAN, USB (1 host, 1 device) | Trig.IN, Trig.OUT, LAN, USB (2 host, 1 device), HDMI | Trig.IN, Trig.OUT, Ref.IN, Ref.OUT, LAN, USB (5 host, 1 device), HDMI | Trig.IN, Trig.OUT, Ref.IN, Ref.OUT, LAN, USB (5 host, 1 device), HDMI, DisplayPort+ | Trig.IN, Trig.OUT, Ref.IN, Ref.OUT, LAN, USB (5 host), HDMI, DisplayPort+ |
| Display Resolution | 10.1″ with capacitive touch 1280 × 800 pixel (WXGA) | 11.6″ TFT with capacitive touch 1920 × 1080 pixel (Full HD) | 13.3″ TFT with capacitive touch 1920 × 1080 pixel (Full HD) | 15.6″ TFT with capacitive touch 1920 × 1080 pixel (Full HD) | 2.9″ e-ink display (EPD) 296 × 128 pixel |
| VESA mount | n.a. | 100 × 100 mm | 100 × 100 mm | 100 × 100 mm (via adapter) | n.a. |
| Temperature | 0 to +50 °C | 0 to +45 °C | 0 to +50 °C | 0 to +50 °C | 0 to +50 °C |
| Power | max. 160W | max. 280W | max. 210W | max. 360W | max. 338W |
| Dimensions (W × H × D) | 390 × 220 × 152 mm | 375 × 233 × 163 mm | 414 × 279 × 162 mm | 445 × 314 × 153 mm | 462 × 107 × 403 mm |
| Rackmount | 5 HU | 5 HU | 6 HU | 8 HU | 2 HU |
| Weight | 3.3 Kg | 4.0 Kg | 6.0 Kg | 9.0 Kg | 9.1 Kg |
| Standard probes | 1 probe/channel: RT-ZP05M (500MHz) | 1 probe/channel: RT-ZP11 (700MHz) | n.a. | ||
| [*option] | optional item – requires purchase of additional software license to enable the feature (at anytime) | ||||
| PriceList | |||||
| 100 MHz | 4 ch.: €5.130,00 2 ch.: €4.320,00 | 4 ch.: €5.350,00 8 ch.: €12.500,00 | n.a. | 4 ch.: n.a. 8 ch.: €21.500,00 | 4 ch.: n.a. 8 ch.: €18.900,00 |
| 200 MHz | 4 ch.: €5.730,00 2 ch.: €5.160,00 | 4 ch.: €5.950,00 8 ch.: €18.00,00 | €9.300,00 | 4 ch.: n.a. 8 ch.: €25.370,00 | 4 ch.: n.a. 8 ch.: €22.580,00 |
| 350 MHz | 4 ch.: €10.670,00 2 ch.: €8.880,00 | 4 ch.: €10.950,00 8 ch.: €23.000,00 | €14.700,00 | 4 ch.: €18.740,00 8 ch.: €30.880,00 | 4 ch.: €17.060,00 8 ch.: €27.830,00 |
| 500 MHz | 4 ch.: €14.400,00 2 ch.: €11.260,00 | 4 ch.: €15.000,00 8 ch.: €27.000,00 | €18.890,00 | 4 ch.: €23.150,00 8 ch.: €38.600,00 | 4 ch.: €21.260,00 8 ch.: €35.180,00 |
| 1 GHz | 4 ch.: €17.880,00 2 ch.: €13.490,00 | 4 ch.: €18.900,00 8 ch.: €36.000,00 | €23.520,00 | 4 ch.: €29.110,00 8 ch.: €48.510,00 | 4 ch.: €26.930,00 8 ch.: €44.630,00 |
| 1.5 GHz | n.a. | n.a. | €27.200,00 | n.a. | n.a. |
| 2 GHz | n.a. | n.a. | n.a. | 4 ch.: €32.530,00 8 ch.: €54.030,00 | 4 ch.: €30.190,00 8 ch.: €49.880,00 |
| B1 (MSO) | €1.860,00 | €1.500,00 | €3.750,00 | €3.750,00 | €3.750,00 |
| B6 (AWG) | €940,00 | €1.000,00 | €1.580,00 | €1.730,00 | €1.730,00 |
| PK1 | €4.000,00 (B6, K1, K2, K3, K5, K6, K7, K15, K31, K36, K37) | €4.900,00 (B6, B105, K31, K36, K510, K520, K530, K550, K560) | €6.430,00 (B6, K31, K36, K510, K520) | €7.720,00 (B6, K31, K36, K510, K520) | €7.720,00 (B6, K31, K36, K510, K520) |

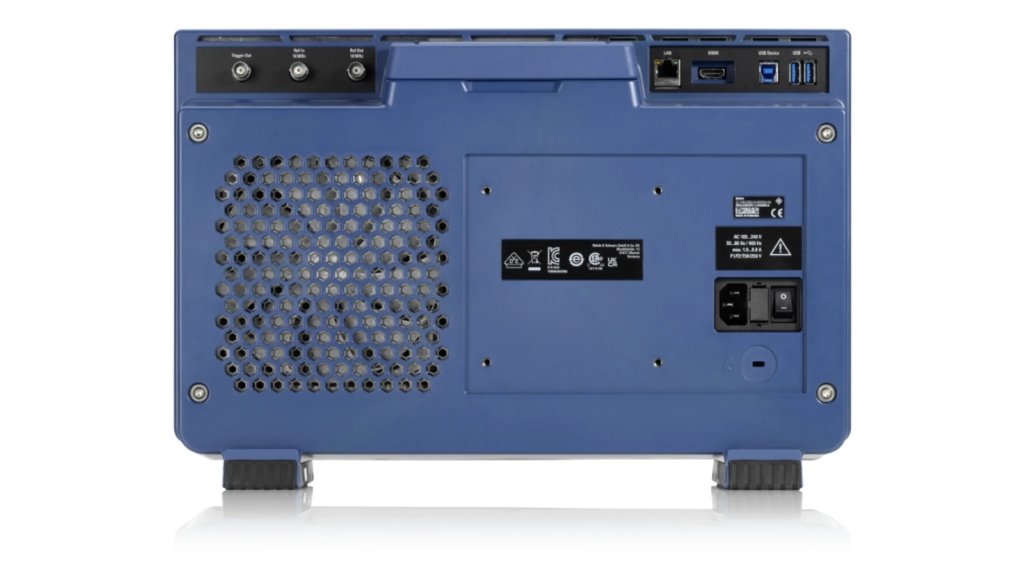

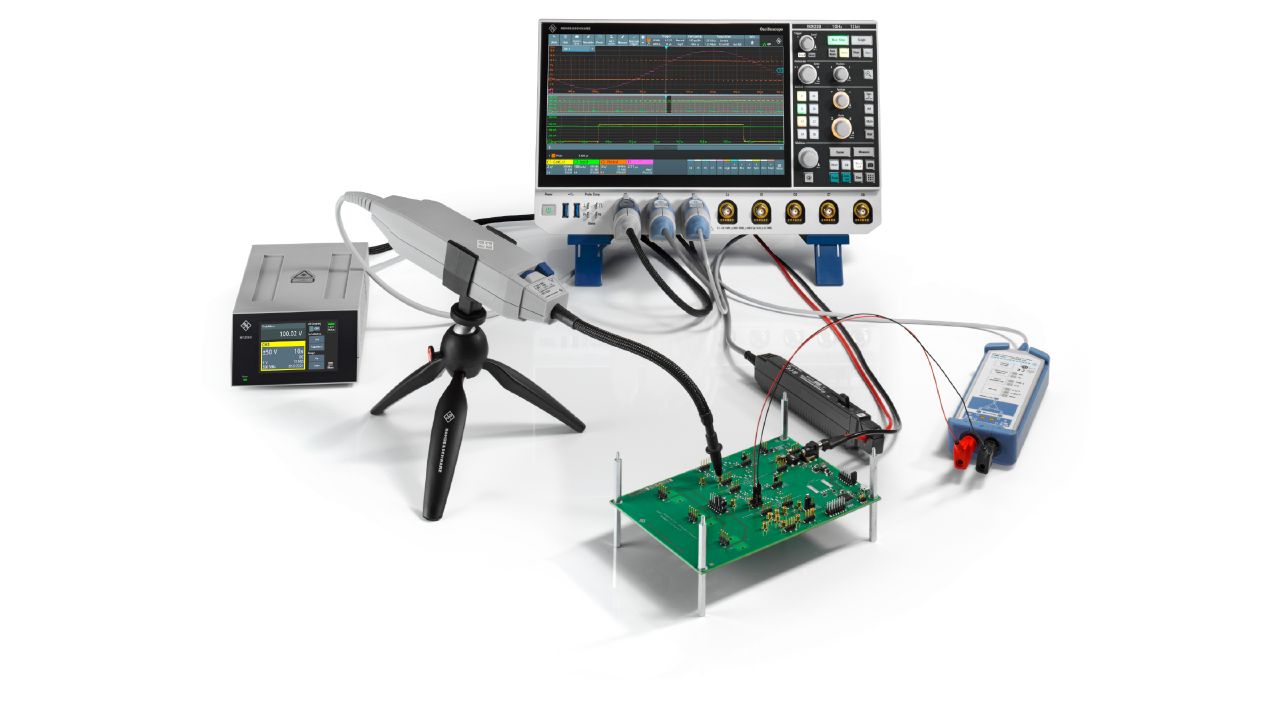

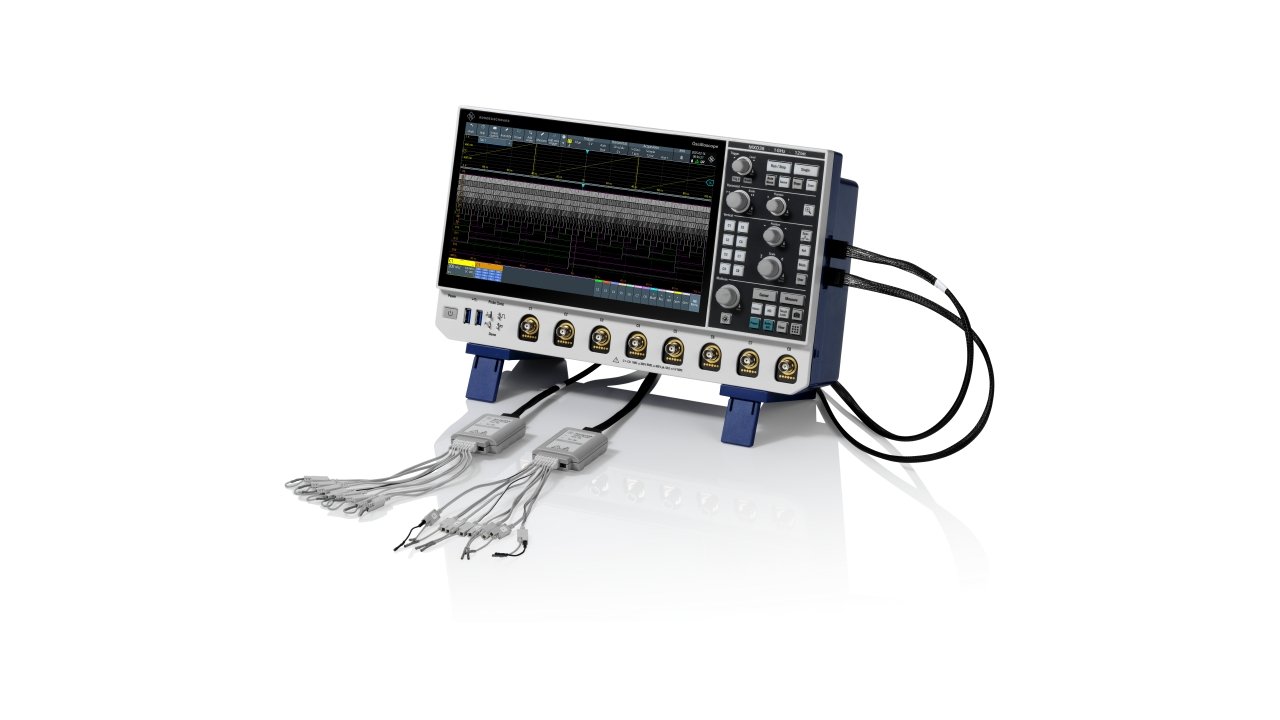

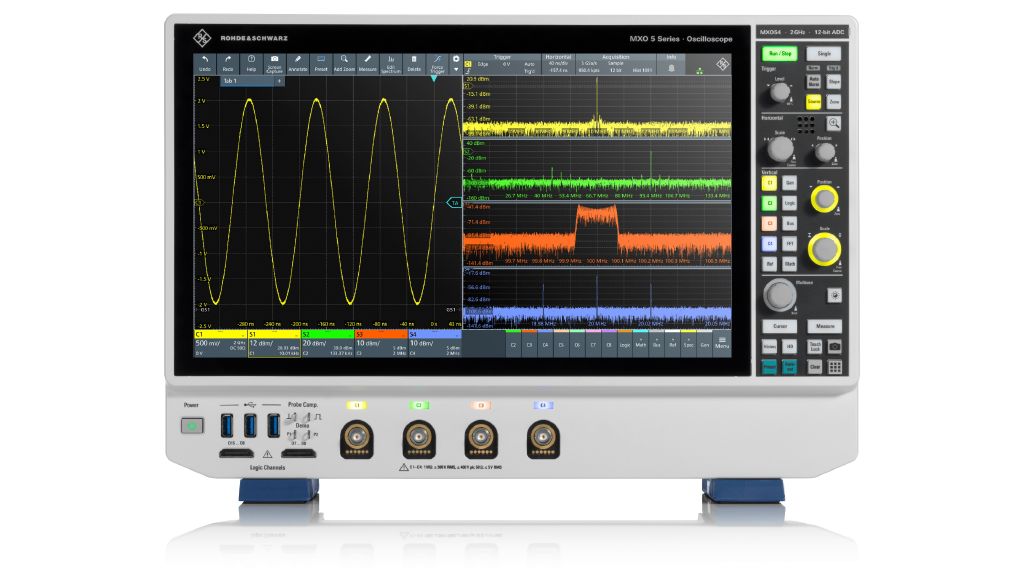

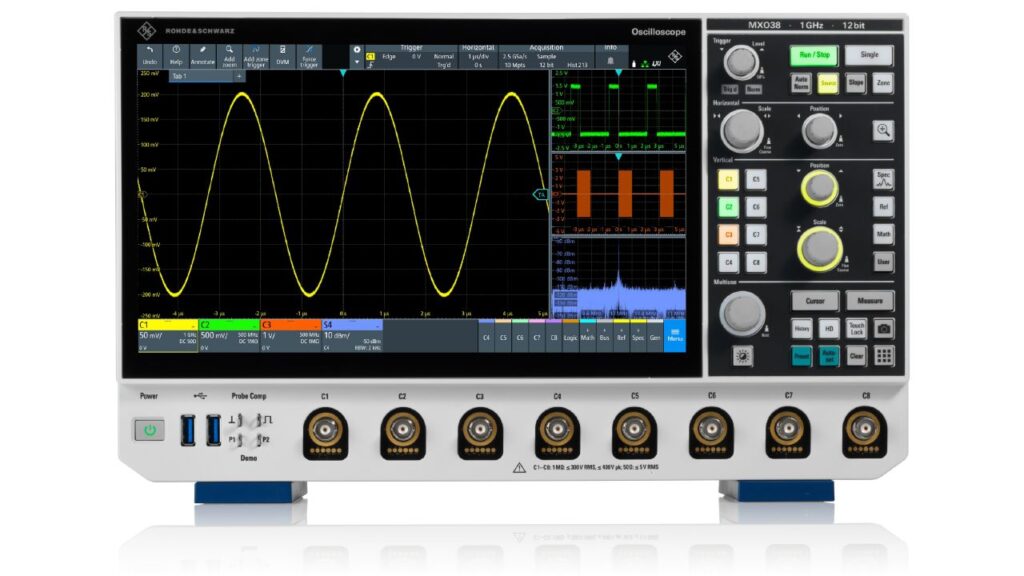

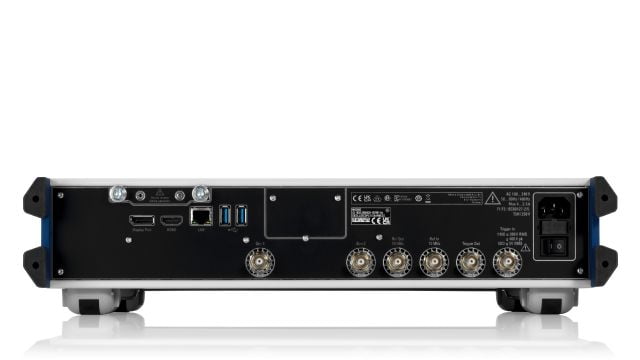

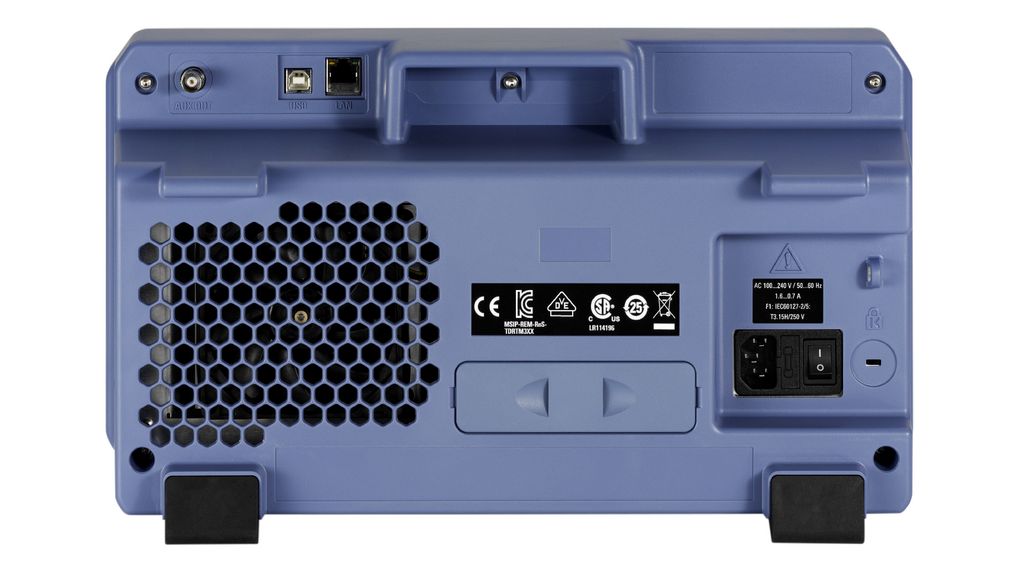

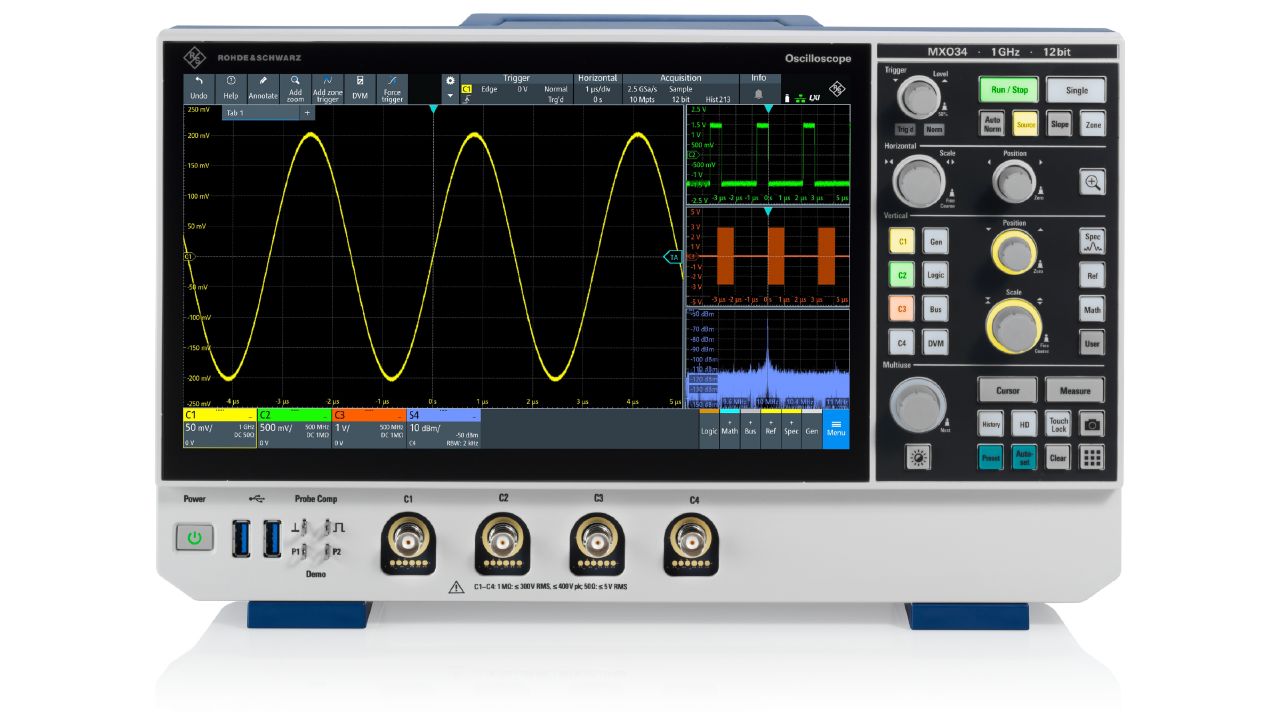

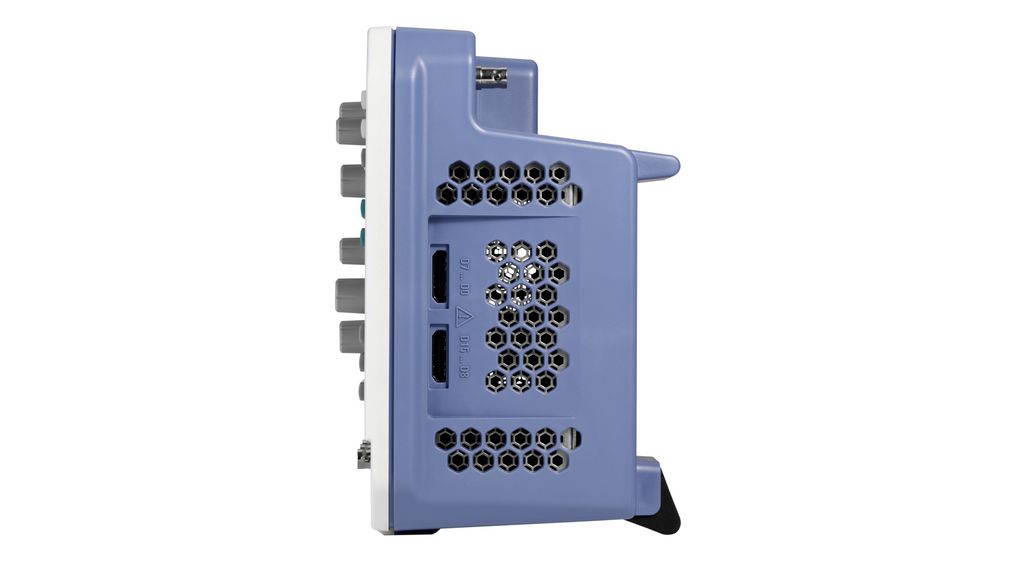

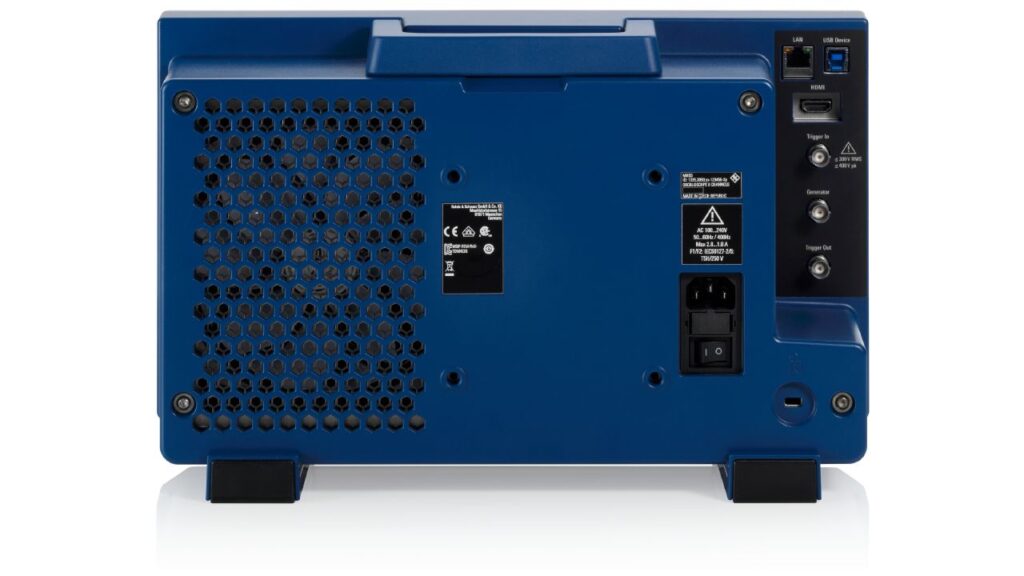

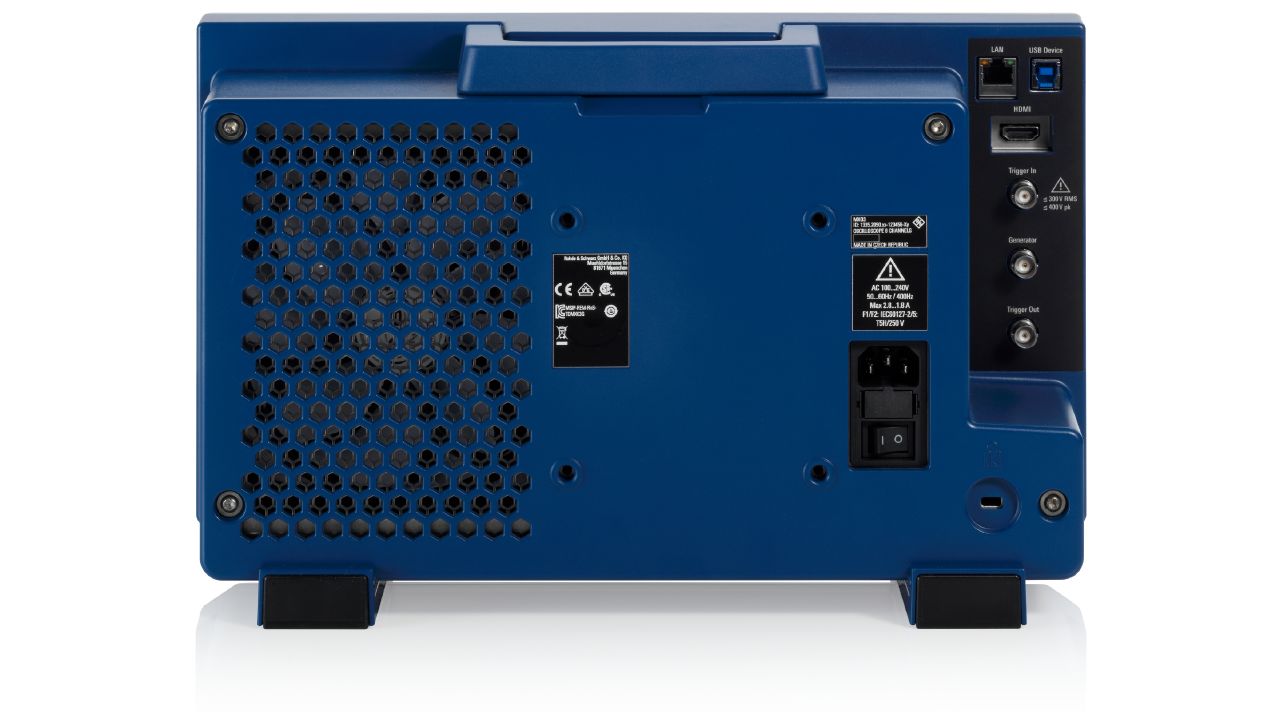

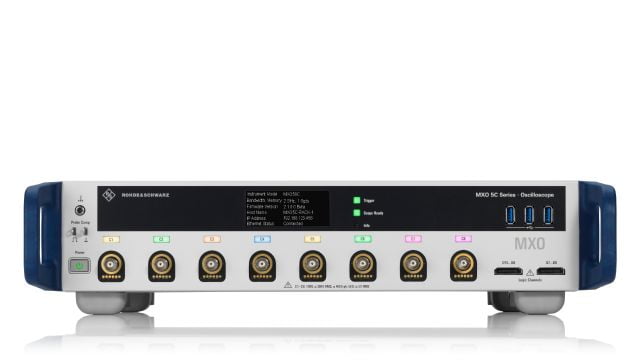

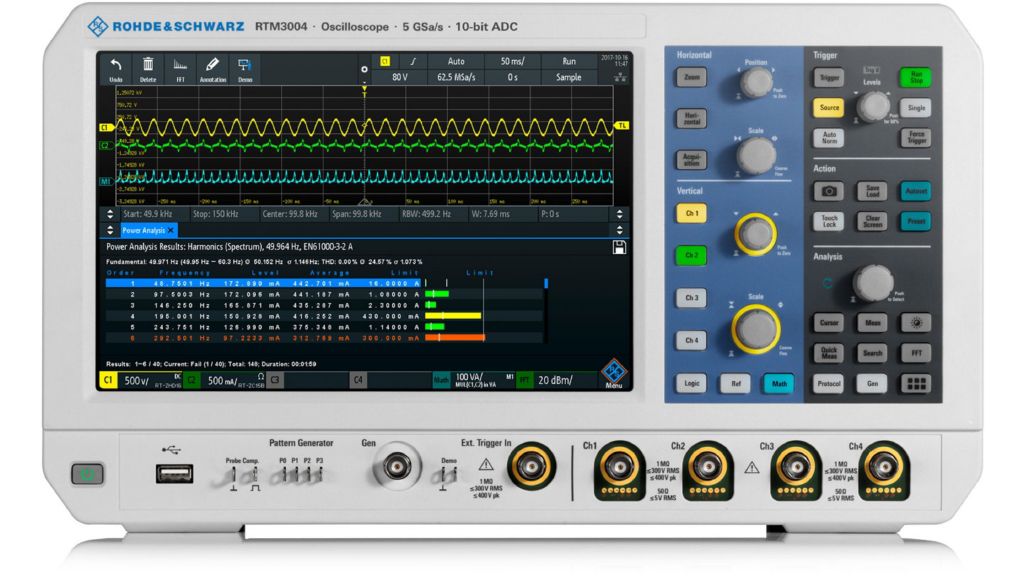

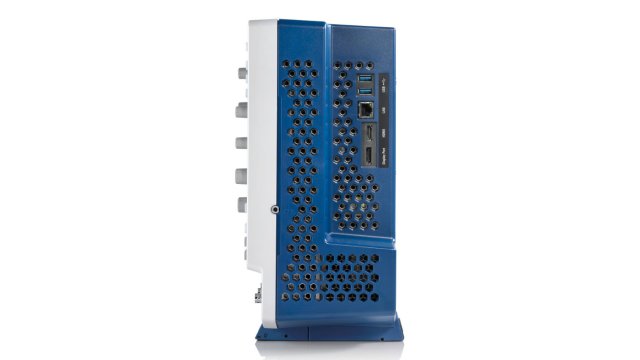

| R&S® | RTM3000 | MXO3 | MXO4 | MXO5 | MXO5C |
| Click over image to zoom-in >>> | |||||
ALLdataGroup: R&S®MXO3 Features at a glance
